USB to RS422/485 Converter

Features include ...

Converts a USB port into an isolated RS422/485 port
1500V AC RMS isolation test voltage (1 second)
Powered entirely from USB port
Up to 115kbps data rate; all valid Win32 baud rates are supported
For Windows 98, ME, 2000, XP, Vista, Win7 and Win8
RS422/485 DB9 pinouts similar to KK converters (K2/K3 range)
Automatic RS485 driver enable - RTS Control not required
User-selectable RS422/485 modes: RS422 or 2/4-wire RS485
Unique USB device ID - non-varying COM port number
Very low cost
Optional 3-pin XLR adaptor cable available












The USB485 is an isolated USB-RS422/485 converter.

This product is ideal for laptops which do not have a physical serial port and cannot be used with a conventional interface converter.

Drivers are included (on an 80mm CD) to create a virtual COM port in the operating system.

The USB485 is unique in the market in that it has a world-unique device ID which ensures that it appears under the same COM port number regardless of which USB port on a particular PC it is plugged into. This simplifies application software configuration.

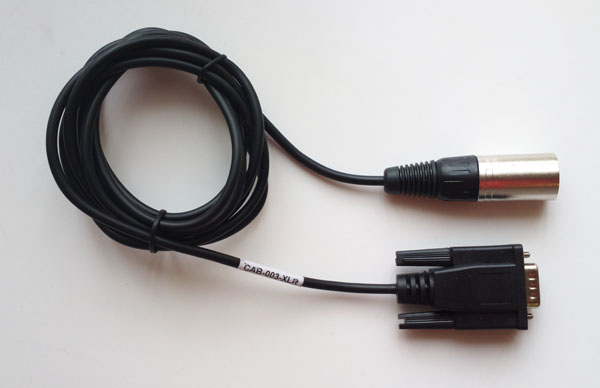

The optional CAB-003-XLR cable converts the DB9 connector to the standard 3-pin male XLR used in professional broadcast applications.
